S9712S
Code: S9712S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE

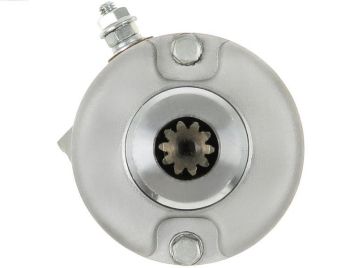

Brand new AS-PL Starter motor
Size b: 37.00 mm
C.1: 7.00 mm
C.2: 6.00 mm
L.1: 165.00 mm
No./teeth: 10
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 35.00 mm
Rotation: ACW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| SMU0250 | Arrowhead | |
| UD19055S | As-pl | |
| STS0250 | Hi Level | |
| 410-54212 | J&n | |
| 18747 | Lester | |
| 31100-15D10 | Suzuki | |
| 31100-47D00 | Suzuki | |
| 31100-47D01 | Suzuki | |
| 18747N | Wai / Transpo | |
| 3RW-81800-00-00 | Yamaha | |
| 3RW-81800-01-00 | Yamaha | |
| 4JG-81800-00-00 | Yamaha |
Usage
| Brand | Model | Type | Year | Note |
| SUZUKI | DR 250 S | [246cc] | 01.1985- | |
| SUZUKI | DR 350 | [349cc] | 01.1989-12.1997 | |
| SUZUKI | DR 350 | [349cc] | 01.1989-12.1993 |
