S9721S
Code: S9721S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE

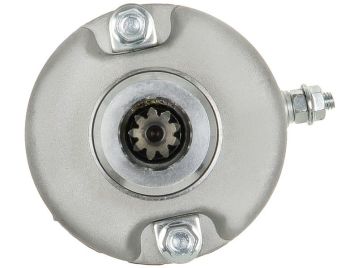

Brand new AS-PL Starter motor
Size b: 41.00 mm
C.1: 7.00 mm
C.2: 7.00 mm
L.1: 170.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 48.00 mm
Rotation: CW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| 10439179 | Alanko | |
| 439179 | Alanko | |
| SMU0354 | Arrowhead | |
| UD19063S | As-pl | |
| 242-06138 | Dixie | |
| 108716 | Farcom | |
| STU1502 | Krauf | |
| 18762 | Lester | |
| 18762N | Wai / Transpo | |
| 71-26-18762 | Wilson | |
| 4GY-81800-02 | Yamaha | |
| 4GY-81800-02-00 | Yamaha | |
| 4GY-81890-00 | Yamaha | |
| 4GY-81890-00-00 | Yamaha |
Usage
| Brand | Model | Type | Year | Note |
| YAMAHA | TT250 | [249cc] | 01.1999-12.2000 | |
| YAMAHA | TTR250 | [249cc] | 01.2001-12.2006 |
