S9724S
Code: S9724S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE

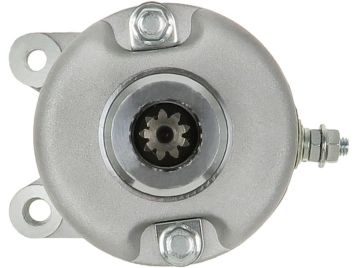

Brand new AS-PL Starter motor
Size b: 40.00 mm
C.1: 6.50 mm
C.2: 6.50 mm
L.1: 153.0 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 45.00 mm
Rotation: ACW
Voltage: 12 v
Reference number
| Code | Manufacturer | |||||||
| 10439216 | Alanko | |||||||
| 439216 | Alanko | |||||||
| ||||||||
| SMU0220 | Arrowhead | |||||||
| UD19152S | As-pl | |||||||
| RS41227 | DELCO | |||||||
| 242-06180 | Dixie | |||||||
| 108678 | Farcom | |||||||
| 31200-HN7-003 | Honda | |||||||
| STU1877 | Krauf | |||||||
| 18683 | Lester | |||||||
| 18683N | Wai / Transpo | |||||||
| 71-26-18683 | Wilson | |||||||
Usage
| Brand | Model | Type | Year | Note |
| HONDA | TRX400FA Rancher AT | [397cc] | 01.2004-12.2007 | |
| HONDA | TRX400FGA Rancher AT | [397cc] | 01.2004-12.2007 | |
| Bms | Ranch Pony | [400cc] | ||
| Bms | Utility | [400cc] | ||
| Bms | Utility A | [400cc] | ||
| Bms | Utility B | [400cc] |
