S9803S
Code: S9803S
Category: Starters
Manufacturer: Kymco
Supplier: As-pl
STANDARD LINE

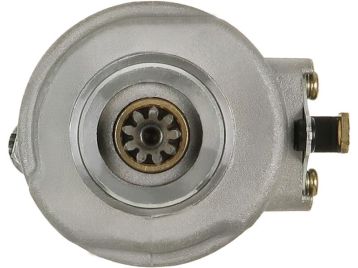

Brand new AS-PL Starter motor
Size b: 35.00 mm
C.1: 7.00 mm
C.2: 7.00 mm
L.1: 157.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 40.00 mm
Rotation: CW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| SCH0014 | Arrowhead | |
| UD19095S | As-pl | |
| 410-58014 | J&n | |
| 31210-LLB1-900 | Kymco | |
| 19583 | Lester | |
| 240.011.092.200 | Psh | |
| 19583N | Wai / Transpo | |
| 71-38-19583 | Wilson |
Usage
| Brand | Model | Type | Year | Note |
| Kymco | Mixer 150 | [149cc] | ||
| Kymco | MXU 150 | [149cc] | 01.2005-12.2009 |
