SA6009


Code: SA6009

Category: Starter armatures

Manufacturer: Denso

Supplier: As-pl

STANDARD LINE

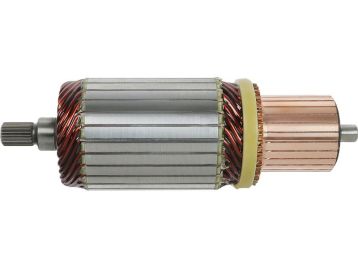

Brand new AS-PL Starter motor armature



Teeth / splines: 21

L.1: 159.60 mm

O.d.1: 50.40 mm

O.d.2: 35.00 mm

Power: 2.00 kW

Slots: 27

Voltage: 12 v



Reference number

CodeManufacturer
UD00685SAAs-pl
UD00698SAAs-pl
UD47728SAAs-pl
139148Cargo
233812Cargo
CQ2110215Cq
028200-6860Denso
028200-6880Denso
ARM6018Electrolog
ARM6091Electrolog
IM3170Ghibaudi
SAN9148Krauf
1013601Powermax
28160-54380Toyota
AM-5021Unipoint
61-8215Wai / Transpo
WSA59187Woodauto
WSA59188Woodauto


Usage

BrandModelTypeYearNote
As-plS6007starter motors
As-plS6012starter motors
As-plS6032starter motors
As-plS6044starter motors
As-plS6047starter motors
As-plS6060starter motors
As-plS6077starter motors
As-plS6078starter motors
As-plS6096starter motors
As-plS6140starter motors
As-plS6178starter motors
As-plS6217Sstarter motors
As-plS6278Sstarter motors
DENSO2280002120starter motors
DENSO2280002121starter motors
DENSO2280002122starter motors
DENSO2280002123starter motors
DENSO2280002124starter motors
DENSO2280002680starter motors
DENSO2280002682starter motors
DENSO2280002690starter motors
DENSO2280002700starter motors
DENSO2280002970starter motors
DENSO2280002980starter motors
DENSO2280003840starter motors
DENSO2280003841starter motors
DENSO2280003842starter motors
DENSO2280003850starter motors
DENSO2280003851starter motors
DENSO2280003852starter motors
DENSO2280003920starter motors
DENSO2280003980starter motors
DENSO2280003981starter motors
DENSO2280004050starter motors
DENSO2280004291starter motors
DENSO2280004570starter motors
DENSO2280004740starter motors
DENSO2280004790starter motors
DENSO2280004830starter motors
DENSO2280004960starter motors
DENSO2280005120starter motors
DENSO2280005121starter motors
DENSO2280005791starter motors
DENSO2280006010starter motors
DENSO2280006482starter motors
DENSO2280006921starter motors
DENSO2280006951starter motors
DENSO2280007111starter motors
DENSO2280007220starter motors
DENSO2280007800starter motors
DENSO2280007801starter motors
DENSO2280008150starter motors
DENSO4280000250starter motors
DENSO4280000260starter motors
DENSO4280000500starter motors
DENSO4280001280starter motors
DENSO4280002730starter motors
DENSO4280004850starter motors
ISUZU8971128650starter motors
ISUZU8971128651starter motors
ISUZU8971128652starter motors
TOYOTA2810054340starter motors
TOYOTA2810054380starter motors
TOYOTA2810054410starter motors
