SA9006


Code: SA9006
Category: Starter armatures
Manufacturer: Elmot
Supplier: As-pl
STANDARD LINE

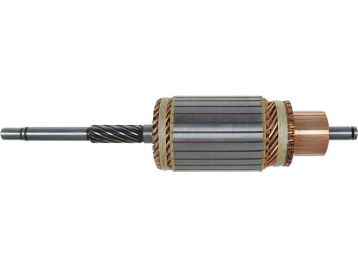

Brand new AS-PL Starter motor armature


Teeth / splines: 10
L.1: 351.30 mm
L.2: 24.60 mm
O.d.1: 75.00 mm
O.d.2: 45.00 mm
O.d.3: 12.70 mm
Power: 4.80 kW
Slots: 27
Voltage: 24 v


Reference number

CodeManufacturer
19024947DELCO
ARMX008Electrolog
851.300.0Elmot
R10Elmot


Usage

BrandModelTypeYearNote
As-plS9066starter motors
ELMOT846.000.0starter motors
ELMOT848.000.2starter motors
ELMOT851.000.0starter motors
ELMOT852.000.0starter motors
ELMOT858.000.0starter motors
ELMOT863.000.5starter motors
ELMOT864.000.3starter motors
ELMOT864.000.5starter motors
ELMOT941.000.0starter motors
ELMOTR0108starter motors
ELMOTR10Astarter motors
ELMOTR10Cstarter motors
ELMOTR10TAstarter motors
ELMOTR10Ustarter motors
ELMOTR10Zstarter motors
