  5. SBH9042S



SBH9042S


Code: SBH9042S

Category: Starter brush holders

Manufacturer: Mitsuba

Supplier: As-pl

STANDARD LINE

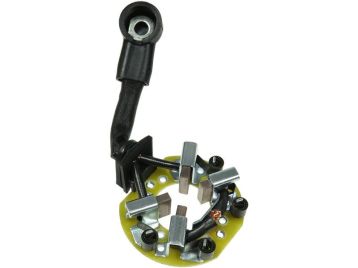

Brand new AS-PL Starter motor brush holder



G.1: 5.00 mm

H.1: 21.40 mm

H.2: 17.30 mm

I.d.1: 30.40 mm

L.1: 85.00 mm

O.1: 47.10 mm

O.d.1: 66.50 mm

Matching brush set: SB3006



Reference number

CodeManufacturer
UD14816SBHAs-pl
UD18382SBHAs-pl
232311Cargo
BHS5998Electrolog
31208-P0G-A01Honda
31208-P0G-A02Honda
31208-P1R-004Honda
31208-P1R-014Honda
31208-P8A-A01Honda
31208-PCA-902Honda
31208-RKB-004Honda
SHU2311Krauf
1012392Powermax
81012392Powermax
69-8503Wai / Transpo
BHD4156Woodauto


Usage

BrandModelTypeYearNote
As-plS9313Sstarter motors
As-plS9329Sstarter motors
As-plS9346Sstarter motors
MITSUBASM40203starter motors
MITSUBASM40204starter motors
MITSUBASM40204Nstarter motors
MITSUBASM40205starter motors
MITSUBASM40205Nstarter motors
MITSUBASM40217starter motors
MITSUBASM40217Nstarter motors
MITSUBASM40221Nstarter motors
MITSUBASM42227starter motors
MITSUBASM442-32starter motors
MITSUBASM442-38starter motors
MITSUBASM44246starter motors
