SBR1030S


Code: SBR1030S

Category: Starter brackets

Manufacturer: DELCO

Supplier: As-pl

STANDARD LINE

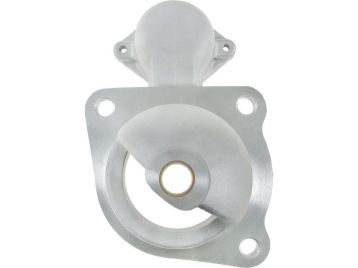

Brand new AS-PL Starter motor D.E. bracket



Size a: 89.00 mm

H.1: 155.00 mm

I.d.1: 14.00 mm

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 90.00 mm

O.2: 90.00 mm

O.3: 128.00 mm



Reference number

CodeManufacturer
UD47405SBRAs-pl
231742Cargo
10457026DELCO
SBD1742YJKrauf
0-23310-1180Nikko
81012391Powermax
51-8404Wai / Transpo
54-01-2193Wilson
BKT4442Woodauto


Usage

BrandModelTypeYearNote
As-plS1007starter motors
As-plS1054starter motors
As-plS1062starter motors
DELCO10461461starter motors
DELCO10461466starter motors
DELCO10479605starter motors
DELCO10479616starter motors
DELCO10479617starter motors
DELCO10479621starter motors
DELCO10479634starter motors
DELCO10479642starter motors
DELCO1113275starter motors
DELCO1113276starter motors
DELCO1113277starter motors
DELCO1113278starter motors
DELCO1113291starter motors
DELCO1113292starter motors
