  5. SBR4001



SBR4001


Code: SBR4001

Category: Starter brackets

Manufacturer: Magneti Marelli

Supplier: As-pl

STANDARD LINE

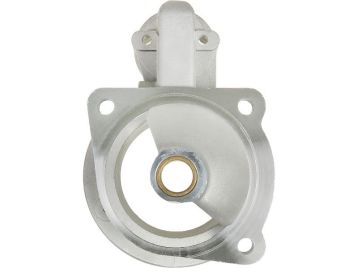

Brand new AS-PL Starter motor D.E. bracket



Size a: 88.50 mm

H.1: 151.00 mm

I.d.1: 17.05 mm

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 89.60 mm

O.2: 89.60 mm

O.3: 127.00 mm



Reference number

CodeManufacturer
UD43014SBRAs-pl
138434Cargo
BDES4058Electrolog
54244390Lucas
54293976Lucas
85541453Magneti Marelli
BKT40914Woodauto


Usage

BrandModelTypeYearNote
As-plS4013starter motors
LUCAS26294starter motors
LUCAS26357starter motors
LUCAS26369starter motors
LUCAS27502starter motors
LUCAS27506starter motors
LUCAS27518starter motors
LUCAS27518Astarter motors
LUCAS27570starter motors
LUCAS27585starter motors
LUCAS27588starter motors
LUCAS27592starter motors
LUCAS27596starter motors
LUCASLRS195starter motors
MAGNETI MARELLI63227502starter motors
MAGNETI MARELLI63227518starter motors
MAGNETI MARELLI63227570starter motors
MAGNETI MARELLI63227574starter motors
MAGNETI MARELLI63227585starter motors
MAGNETI MARELLI63227588starter motors
MAGNETI MARELLI63227592starter motors
MAGNETI MARELLI63227596starter motors
PERKINS2873A030starter motors
PERKINS2873B056starter motors
PERKINS2873B071starter motors
