Code: SD0003
Category: Starter drives
Manufacturer: Bosch
Supplier: As-pl
STANDARD LINE

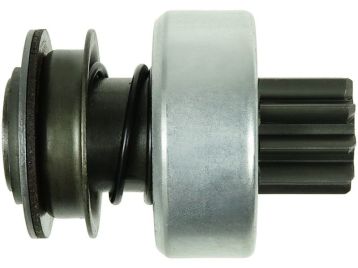

Brand new AS-PL Starter motor drive


I.d.1: 12.00 mm
L.1: 73.00 mm
L.2: 20.70 mm
Teeth: 9
Splines: 10
O.d.1: 53.00 mm
O.d.2: 25.50 mm
Rotation: CW


Reference number

CodeManufacturer
2006209241Bosch
2006209242Bosch
2006209249Bosch
2006209331Bosch
2006209332Bosch
130409Cargo
CQ2010032Cq
DRV1033Electrolog
225125Era
225127Era
3017Ghibaudi
4.5057.1Ika
SDB1409Krauf
SDB9409Krauf
940113020085Magneti Marelli
0001518313Mercedes
A0001518313Mercedes
1017184Powermax
81017184Powermax
12-331Stemot
32-42-62Visnova
54-9103Wai / Transpo
61-15-6450Wilson
SDV3887Woodauto
0319Zen
1.01.0319.0Zen
ZN0319Zen


Usage

BrandModelTypeYearNote
BOSCH0001362001starter motors
BOSCH0001362002starter motors
BOSCH0001362003starter motors
BOSCH0001362004starter motors
BOSCH0001362007starter motors
BOSCH0001362027starter motors
BOSCH0001362028starter motors
BOSCH0001362029starter motors
BOSCH0001362030starter motors
BOSCH9000143406starter motors
