SD0004


Code: SD0004

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

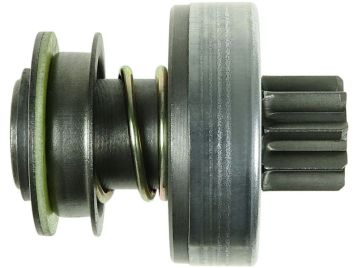

Brand new AS-PL Starter motor drive



I.d.1: 12.00 mm

L.1: 71.80 mm

L.2: 18.80 mm

Teeth: 9

Splines: 10

O.d.1: 58.20 mm

O.d.2: 25.30 mm

Rotation: CW



Reference number

CodeManufacturer
2006209471Bosch
2006209500Bosch
130414Cargo
130414ZCargo
333516Cargo
CQ2010006Cq
19024522DELCO
19024526DELCO
5460-6200-2Dixie
DRV1034Electrolog
DRV79239Electrolog
225098Era
1546Ghibaudi
2997Ghibaudi
4.5003.1Ika
16.900.920Iskra / Letrika
SDB1414Krauf
SDB8414Krauf
940113020061Magneti Marelli
MSX738Mahle
0001516813Mercedes
A0001516813Mercedes
1014300Powermax
81014300Powermax
12-471Stemot
12-500 Stemot
32-42-34Visnova
1257680Volvo
069911335Vw
54-9118Wai / Transpo
54-9118-1Wai / Transpo
61-15-6439Wilson
SDV3896Woodauto
0228Zen
1.01.0228.0Zen
ZN0228Zen


Usage

BrandModelTypeYearNote
As-plS0310starter motors
BOSCH0001362001starter motors
BOSCH0001362002starter motors
BOSCH0001362029starter motors
BOSCH0001362030starter motors
BOSCH0001362038starter motors
BOSCH0001362047starter motors
BOSCH0001362069starter motors
BOSCH0001362070starter motors
BOSCH0001362077starter motors
BOSCH0001362078starter motors
BOSCH0001362083starter motors
BOSCH0001362600starter motors
BOSCH0001362601starter motors
BOSCH0001362604starter motors
BOSCH0001362605starter motors
BOSCH0001369004starter motors
BOSCH9000143406starter motors
BOSCH9000143408starter motors
DELCO19024239starter motors
DELCO19024249starter motors
VOLVO1257938starter motors
VOLVO5001867starter motors
Iskra / Letrika11130300starter motors
Iskra / Letrika11130399starter motors
Iskra / Letrika11130726starter motors
Iskra / Letrika11130885starter motors
Iskra / Letrika11130886starter motors
Iskra / LetrikaAZJ3107starter motors
Iskra / LetrikaAZJ3567starter motors
