  5. SD0025



SD0025


Code: SD0025

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

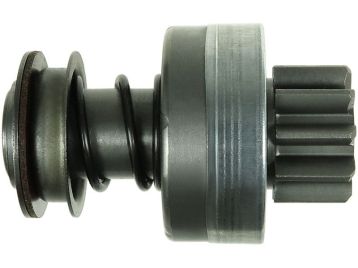

Brand new AS-PL Starter motor drive



I.d.1: 14.00 mm

L.1: 91.00 mm

L.2: 23.00 mm

Teeth: 10

Splines: 10

O.d.1: 59.10 mm

O.d.2: 37.80 mm

Rotation: CW



Reference number

CodeManufacturer
2006209498Bosch
2006209533Bosch
2006209539Bosch
2006209932Bosch
131475Cargo
333223Cargo
CQ2010053Cq
19025747DELCO
91216076DELCO
DRV1317Electrolog
225213Era
1562Ghibaudi
1856Ghibaudi
SDB1475Krauf
940113020153Magneti Marelli
AMB0153Magneti Marelli
81262136002Man
81011527Powermax
060.000.009Psh
12-498Stemot
12-533Stemot
42-42-58Visnova
54-91145Wai / Transpo
61-15-6529Wilson
SDV38018Woodauto
0538Zen
1.01.0538.0Zen
ZN0538Zen
18570Znp


Usage

BrandModelTypeYearNote
As-plS0041starter motors
As-plS0509starter motors
BOSCH0001366019starter motors
BOSCH0001368016starter motors
BOSCH0001368043starter motors
BOSCH0001368081starter motors
BOSCH0001368311starter motors
BOSCH0001368320starter motors
BOSCHB001811052starter motors
BOSCHB001816150starter motors
BOSCHB001816548starter motors
