SD0033


Code: SD0033

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

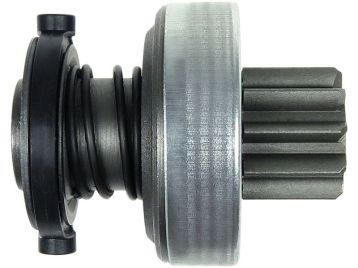

Brand new AS-PL Starter motor drive



I.d.1: 12.00 mm

L.1: 65.00 mm

L.2: 20.70 mm

Teeth: 10

Splines: 10

O.d.1: 53.30 mm

O.d.2: 27.80 mm

Rotation: CW



Reference number

CodeManufacturer
1006209523Bosch
9000336291Bosch
9003336291Bosch
131995Cargo
138256Cargo
333577Cargo
CQ2010012Cq
5460-2107Dixie
DRV1320Electrolog
225229Era
1608Ghibaudi
4.5006.1Ika
SDB1895Krauf
223746Lucas
940113020166Magneti Marelli
AMB0166Magneti Marelli
0011510113Mercedes
A0011510113Mercedes
81014626Powermax
11-523Stemot
42-42-60Visnova
54-9177Wai / Transpo
54-9177-ZENWai / Transpo
61-15-6468Wilson
BOS1006209523Woodauto
SDV38022Woodauto
0572Zen
1.01.0572.0Zen
ZN0572Zen
18244Znp


Usage

BrandModelTypeYearNote
As-plS0016starter motors
As-plS0144starter motors
As-plS0266starter motors
As-plS0419starter motors
As-plS0820Sstarter motors
BOSCH0001218006starter motors
BOSCH0001218016starter motors
BOSCH0001218021starter motors
BOSCH0001218029starter motors
BOSCH0001218108starter motors
BOSCH0001218109starter motors
BOSCH0001218110starter motors
BOSCH0001218137starter motors
BOSCH0001218150starter motors
BOSCH0001218156starter motors
BOSCH0001218160starter motors
BOSCH0001218710starter motors
BOSCH0001219001starter motors
BOSCH0001219007starter motors
BOSCH0001219009starter motors
BOSCH0001219013starter motors
BOSCH0001219015starter motors
BOSCH0001219016starter motors
BOSCH0001219017starter motors
BOSCHB001233017starter motors
BOSCHB001233066starter motors
BOSCHB001233084starter motors
BOSCHB001233090starter motors
BOSCHB001233106starter motors
BOSCHB001233121starter motors
BOSCHB001233168starter motors
BOSCHB001233172starter motors
BOSCHB001233182starter motors
BOSCHB001233261starter motors
BOSCHB001233264starter motors
BOSCHB001235014starter motors
