SD0042


Code: SD0042

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

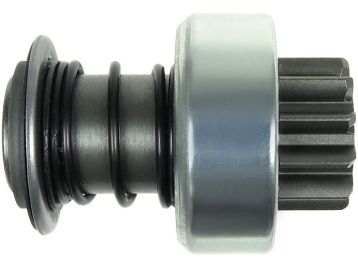

Brand new AS-PL Starter motor drive



I.d.1: 12.00 mm

L.1: 64.00 mm

L.2: 14.10 mm

Teeth: 11

Splines: 10

O.d.1: 46.30 mm

O.d.2: 29.30 mm

Rotation: CW



Reference number

CodeManufacturer
1006209425Bosch
9001082324Bosch
9001082749Bosch
F000AL1001Bosch
F000AL1871Bosch
132194Cargo
RES9890Cargo
CQ2010267Cq
DRV1042Electrolog
225052Era
7073094Fiat
9932923Fiat
2922Ghibaudi
SDB1194Krauf
SDB9194Krauf
940113020025Magneti Marelli
1011709Powermax
81011709Powermax
060.000.095Psh
11-425Stemot
557432Valeo
32-42-01Visnova
54-91138Wai / Transpo
54-91138-1Wai / Transpo
54-91138-ZENWai / Transpo
54-9303Wai / Transpo
SDV3790Woodauto
0111Zen
1.01.0111.0Zen
ZN0111Zen


Usage

BrandModelTypeYearNote
BOSCH0001208218starter motors
BOSCH0001208408starter motors
BOSCH0001208410starter motors
BOSCH0001208422starter motors
BOSCH0001211246starter motors
BOSCH0001311116starter motors
BOSCH0001311119starter motors
BOSCH0001311123starter motors
BOSCH0001311129starter motors
BOSCH0001311130starter motors
BOSCH0001311133starter motors
BOSCH0001315005starter motors
BOSCH0001316010starter motors
BOSCH9000082021starter motors
BOSCH9000082039starter motors
BOSCH9000082040starter motors
BOSCH9000082044starter motors
BOSCH9000082053starter motors
BOSCH9000082061starter motors
BOSCH9000082066starter motors
BOSCH9000082070starter motors
BOSCH9000082079starter motors
BOSCH9000082080starter motors
BOSCH9000082081starter motors
BOSCH9000082082starter motors
BOSCH9000082083starter motors
BOSCH9000082085starter motors
BOSCH9000142100starter motors
BOSCH9000333112starter motors
