  3. SD0073S



SD0073S


Code: SD0073S
Category: Starter drives
Manufacturer: Bosch
Supplier: As-pl
STANDARD LINE

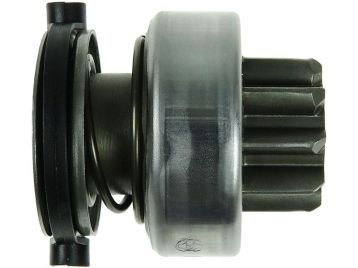

Brand new AS-PL Starter motor drive


I.d.1: 12.00 mm
L.1: 51.20 mm
L.2: 15.20 mm
Teeth: 9
Splines: 10
O.d.1: 46.00 mm
O.d.2: 29.60 mm
Rotation: CW


Reference number

CodeManufacturer
UD03252SDAs-pl
1006209634Bosch
1006209660Bosch
1006209779Bosch
1006209792Bosch
1006209983Bosch
1006209995Bosch
1006210134Bosch
1006210144Bosch
1006210224Bosch
137888Cargo
234902Cargo
CQ2010034Cq
DRV1123Electrolog
225462Era
2149Ghibaudi
SDB1788Krauf
SDB9788Krauf
1017038Powermax
11-779Stemot
SD-2124Unipoint
52-42-36Visnova
54-91101Wai / Transpo
54-91101-1Wai / Transpo
SDV38132Woodauto
1.01.0997.0Zen


Usage

BrandModelTypeYearNote
BOSCH0001107062starter motors
BOSCH0001108157starter motors
BOSCH0001108169starter motors
BOSCH0001108190starter motors
BOSCH0001108196starter motors
BOSCH0001108202starter motors
BOSCH0001108224starter motors
BOSCH0001108230starter motors
BOSCH0001108231starter motors
BOSCH0001108234starter motors
BOSCH0001108235starter motors
BOSCH0001109204starter motors
BOSCH0001115021starter motors
BOSCH0001115025starter motors
BOSCH0001115040starter motors
BOSCH0001115041starter motors
BOSCH0001115045starter motors
BOSCH0001115046starter motors
BOSCH0001138001starter motors
BOSCH0001138002starter motors
