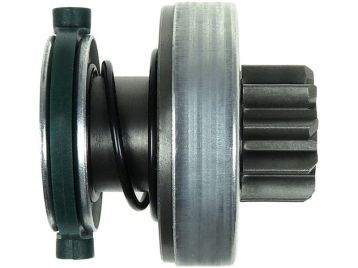

SD0080


Code: SD0080

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

Brand new AS-PL Starter motor drive



I.d.1: 12.00 mm

L.1: 52.00 mm

L.2: 15.00 mm

Teeth: 10

Splines: 10

O.d.1: 52.20 mm

O.d.2: 27.80 mm

Rotation: CW



Reference number

CodeManufacturer
1006209642Bosch
138322Cargo
333214Cargo
CQ2010046Cq
DRV1133Electrolog
225498Era
2126Ghibaudi
SDB1323Krauf
SDB8323Krauf
SDB9323Krauf
940113020365Magneti Marelli
1014767Powermax
81014767Powermax
11-642Stemot
52-42-40Visnova
54-91155Wai / Transpo
SDV38108Woodauto
SDV38136Woodauto
1.01.1057.0Zen
1057Zen
ZN1057Zen


Usage

BrandModelTypeYearNote
As-plS0026starter motors
BOSCH0001109014starter motors
BOSCH0001115001starter motors
