SD0103
Code: SD0103
Category: Starter drives
Manufacturer: Bosch
Supplier: As-pl
STANDARD LINE

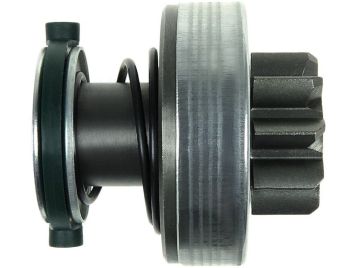

Brand new AS-PL Starter motor drive
I.d.1: 12.00 mm
L.1: 59.40 mm
L.2: 15.40 mm
Teeth: 9
Splines: 16
O.d.1: 58.00 mm
O.d.2: 36.00 mm
Rotation: CW
Reference number
| Code | Manufacturer | |
| 6033AD0270 | Bosch | |
| 6033AD0414 | Bosch | |
| 233719 | Cargo | |
| 233921 | Cargo | |
| 234405 | Cargo | |
| 333206 | Cargo | |
| CQ2010718 | Cq | |
| DRV1102 | Electrolog | |
| 225480 | Era | |
| 9949055 | Fiat | |
| 2239 | Ghibaudi | |
| SDB1719 | Krauf | |
| SDB9719 | Krauf | |
| 1013764 | Powermax | |
| 1015085 | Powermax | |
| 81013764 | Powermax | |
| 13-414 | Stemot | |
| 62-42-02 | Visnova | |
| 54-91153 | Wai / Transpo | |
| BOS6033AD0414 | Woodauto | |
| SDV38046 | Woodauto | |
| 1.01.1022.0 | Zen | |
| 1022 | Zen | |
| ZN1022 | Zen |
Usage
| Brand | Model | Type | Year | Note |
| As-pl | S0089 | starter motors | ||
| As-pl | S0320 | starter motors | ||
| BOSCH | 0001223010 | starter motors | ||
| BOSCH | 0001223013 | starter motors |
