SD0122(BOSCH)


Code: SD0122(BOSCH)

Category: Starter drives

Manufacturer: Bosch

Supplier: Bosch

PREMIUM LINE

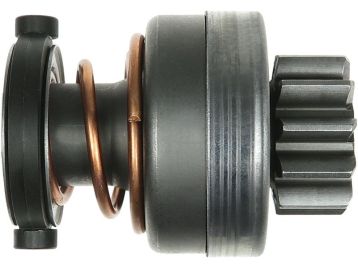

Brand new OEM BOSCH Starter motor drive



I.d.1: 14.30 mm

L.1: 83.00 mm

L.2: 21.40 mm

Teeth: 11

Splines: 10

O.d.1: 61.60 mm

O.d.2: 40.60 mm

Rotation: CW



Reference number

CodeManufacturer
UD808223(BOSCH)SDAs-pl
UD808237(BOSCH)SDAs-pl
6033AD0242Bosch
6033AD0304Bosch
6033AD0467Bosch
6033AD4052Bosch
6033AD4232Bosch
233949Cargo
236130Cargo
331683Cargo
335232Cargo
5460-2305Dixie
DRV1065Electrolog
225551Era
F926900060100Fendt
2384Ghibaudi
940113020404Magneti Marelli
51-26213-0002Man
1012198Powermax
81012198Powermax
861230Prestolite
21228743Volvo
85103855Volvo
54-91158Wai / Transpo
54-91158-1Wai / Transpo
BOS6033AD4052Woodauto
1.01.1179.0Zen


Usage

BrandModelTypeYearNote
As-plS0107starter motors
BOSCH0001231007starter motors
BOSCH0001231014starter motors
BOSCH0001231019starter motors
BOSCH0001231030starter motors
BOSCH0001231034starter motors
BOSCH0001263003starter motors
