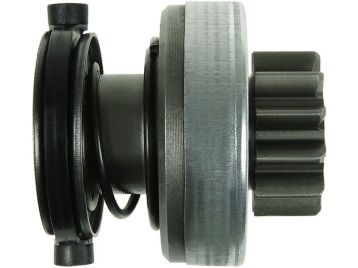

SD0147


Code: SD0147

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

Brand new AS-PL Starter motor drive



I.d.1: 12.00 mm

L.1: 51.00 mm

L.2: 14.40 mm

Teeth: 12

Splines: 10

O.d.1: 50.40 mm

O.d.2: 32.00 mm

Rotation: CW



Reference number

CodeManufacturer
SD0147 As-pl
1006209828 Bosch
1006209836 Bosch
1006209845 Bosch
330125Cargo
333581Cargo
333866Cargo
CQ2012572Cq
DRV1432Electrolog
225728Era
6145 Ghibaudi
SDB1845Krauf
SDB7845Krauf
1017682Powermax
81017682Powermax
11-845Stemot
BOS1006209845Woodauto
SDV38030Woodauto
1.01.1696.0Zen
1696Zen
ZN1696Zen


Usage

BrandModelTypeYearNote
As-plS0218starter motors
BOSCH0001115047starter motors
BOSCH0001115048starter motors
BOSCH0001115074starter motors
