SD0223


Code: SD0223

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

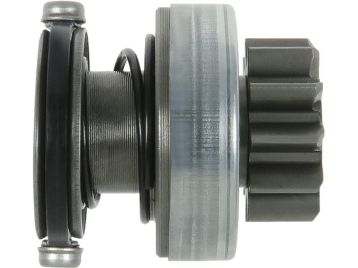

Brand new AS-PL Starter motor drive



I.d.1: 12.00 mm

L.1: 51.20 mm

L.2: 15.60 mm

Teeth: 11

Splines: 10

O.d.1: 47.80 mm

O.d.2: 35.60 mm

Rotation: CW



Reference number

CodeManufacturer
1006209866Bosch
1006210108Bosch
335189Cargo
DRV1455Electrolog
6256Ghibaudi
SDB9866Krauf
62-42-93New Vis
11-866Stemot
3132062MA0000Suzuki
31320T62MA0000Suzuki


Usage

BrandModelTypeYearNote
As-plS0314starter motors
As-plS0621Sstarter motors
BOSCH0001138009starter motors
BOSCH0001138071starter motors
