SD2001


Code: SD2001

Category: Starter drives

Manufacturer: Hitachi

Supplier: As-pl

STANDARD LINE

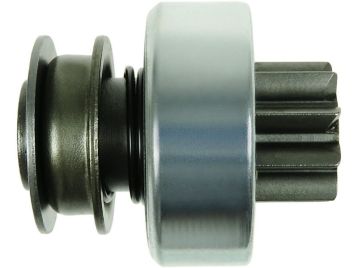

Brand new AS-PL Starter motor drive



I.d.1: 14.00 mm

L.1: 69.60 mm

L.2: 19.00 mm

Teeth: 9

Splines: 12

O.d.1: 59.90 mm

O.d.2: 32.80 mm

Rotation: CW



Reference number

CodeManufacturer
131984Cargo
DRV3004Electrolog
225151Era
3217Ghibaudi
2120-3500Hitachi
2120-35001Hitachi
2120-3500AHitachi
2120-7500Hitachi
2120-7530Hitachi
2120-7550Hitachi
2130-35001Hitachi
2130-7550Hitachi
2250-35002Hitachi
5811230020Isuzu
5811230070Isuzu
9821212380Isuzu
9821223800Isuzu
CQ2010576Lauber
1013935Powermax
39-70-97Visnova
44-2910Wai / Transpo
54-8105Wai / Transpo
54-8105-1Wai / Transpo
54-8117-ZENWai / Transpo
SDV38515Woodauto
1.01.0376.0Zen


Usage

BrandModelTypeYearNote
HITACHIS1224starter motors
HITACHIS1224Astarter motors
HITACHIS1241starter motors
HITACHIS1241Astarter motors
HITACHIS1246starter motors
HITACHIS1248starter motors
HITACHIS1256starter motors
HITACHIS1258starter motors
HITACHIS1259starter motors
HITACHIS1261starter motors
HITACHIS1282starter motors
HITACHIS1288starter motors
HITACHIS1306starter motors
HITACHIS1306Astarter motors
HITACHIS1325starter motors
HITACHIS1327starter motors
HITACHIS1327Astarter motors
HITACHIS1328starter motors
HITACHIS1331starter motors
HITACHIS1333starter motors
HITACHIS1333Astarter motors
HITACHIS1333Bstarter motors
HITACHIS1355starter motors
HITACHIS25121Astarter motors
ISUZU5811000571starter motors
ISUZU5811000740starter motors
ISUZU5811000800starter motors
ISUZU5811000801starter motors
ISUZU5811000820starter motors
ISUZU5811000990starter motors
ISUZU5811001110starter motors
ISUZU5811001111starter motors
ISUZU5811001112starter motors
ISUZU5811001292starter motors
ISUZU9821001520starter motors
ISUZU9821001522starter motors
ISUZU9821001830starter motors
ISUZU9821001832starter motors
