  5. SD2023



SD2023


Code: SD2023

Category: Starter drives

Manufacturer: Hitachi

Supplier: As-pl

STANDARD LINE

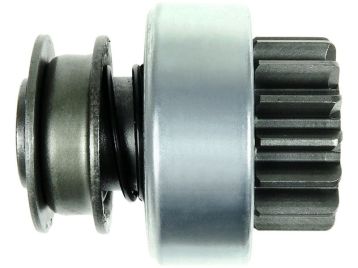

Brand new AS-PL Starter motor drive



I.d.1: 14.00 mm

L.1: 69.70 mm

L.2: 19.00 mm

Teeth: 15

Splines: 12

O.d.1: 59.50 mm

O.d.2: 44.00 mm

Rotation: CW



Reference number

CodeManufacturer
133266Cargo
CQ2010672Cq
DRV3055Electrolog
225336Era
1853 Ghibaudi
2120-45001Hitachi
2130-55005Hitachi
2130-65002Hitachi
2250-550Hitachi
2250-6500Hitachi
2250-7500Hitachi
2280-3500Hitachi
1-81122029-0Isuzu
9821212310Isuzu
SDH5266Krauf
23313-90005Nissan
23313-99202Nissan
1013723Powermax
81013723Powermax
59-70-58Visnova
54-8127Wai / Transpo
54-8146Wai / Transpo
54-8146-1Wai / Transpo
61-25-14160Wilson
SDV38530Woodauto
121254-77660Yanmar
0785Zen
1.01.0785.0Zen
ZN0785Zen


Usage

BrandModelTypeYearNote
As-plS2114Sstarter motors
HITACHIS1223starter motors
HITACHIS1247starter motors
HITACHIS1252starter motors
HITACHIS1277Astarter motors
HITACHIS1279starter motors
HITACHIS1283starter motors
HITACHIS1324starter motors
HITACHIS1324Astarter motors
HITACHIS1337starter motors
HITACHIS1337Bstarter motors
HITACHIS1341starter motors
HITACHIS1341Astarter motors
HITACHIS1341Bstarter motors
HITACHIS1341Cstarter motors
HITACHIS1341Dstarter motors
HITACHIS1367starter motors
HITACHIS1367Bstarter motors
HITACHIS1378starter motors
HITACHIS1379starter motors
HITACHIS25112Astarter motors
HITACHIS25115starter motors
YANMAR12013077010starter motors
YANMAR12125477011starter motors
YANMAR12137077010starter motors
YANMAR12140077010starter motors
YANMAR12175077011starter motors
YANMAR12425077012starter motors
YANMAR17105877010starter motors
YANMAR17107977010starter motors
