SD4004


Code: SD4004
Category: Starter drives
Manufacturer: Magneti Marelli
Supplier: As-pl
STANDARD LINE

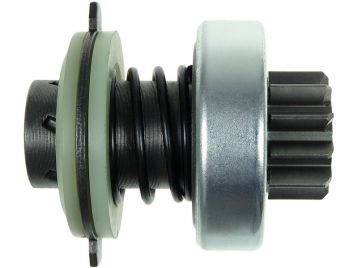

Brand new AS-PL Starter motor drive


I.d.1: 14.00 mm
L.1: 67.00 mm
L.2: 14.70 mm
Teeth: 11
Splines: 6
O.d.1: 52.50 mm
O.d.2: 30.00 mm
Rotation: CW


Reference number

CodeManufacturer
9001133219Bosch
130738Cargo
CQ2010321Cq
DRV7007Electrolog
225085Era
17061-10Femsa
4154293Fiat
4243124Fiat
4475122Fiat
2674 Ghibaudi
SDE0738Krauf
SDE9738Krauf
2101-3708-620Lada
74866611Magneti Marelli
74867401Magneti Marelli
74874241Magneti Marelli
85540271Magneti Marelli
85540751Magneti Marelli
1010397Powermax
81010397Powermax
00-41-32Visnova
54-9306Wai / Transpo
54-9306-1Wai / Transpo
61-19-24020Wilson
SDV3815Woodauto
0213Zen
1.01.0213.0Zen
ZN0213Zen


Usage

BrandModelTypeYearNote
LADA21003708000starter motors
LADA2213708000starter motors
LADA31013708000starter motors
LADA3708000starter motors
LADACT2213708000starter motors
MAGNETI MARELLI36222700starter motors
MAGNETI MARELLI63222400starter motors
MAGNETI MARELLI63222405starter motors
MAGNETI MARELLI63222408starter motors
MAGNETI MARELLI63222409starter motors
MAGNETI MARELLI63222430starter motors
MAGNETI MARELLI63222435starter motors
MAGNETI MARELLI63222438starter motors
MAGNETI MARELLI63222439starter motors
MAGNETI MARELLI63222501starter motors
MAGNETI MARELLI63222502starter motors
MAGNETI MARELLI63222506starter motors
MAGNETI MARELLI63222531starter motors
MAGNETI MARELLI63222532starter motors
MAGNETI MARELLI63222536starter motors
MAGNETI MARELLI63222602starter motors
MAGNETI MARELLI63222605starter motors
MAGNETI MARELLI63222606starter motors
MAGNETI MARELLI63222632starter motors
MAGNETI MARELLI63222635starter motors
MAGNETI MARELLI63222636starter motors
MAGNETI MARELLI63222700starter motors
MAGNETI MARELLI63222701starter motors
MAGNETI MARELLI63222706starter motors
MAGNETI MARELLI63222730starter motors
MAGNETI MARELLI63222731starter motors
MAGNETI MARELLI63222736starter motors
