SD4023


Code: SD4023

Category: Starter drives

Manufacturer: Magneti Marelli

Supplier: As-pl

STANDARD LINE

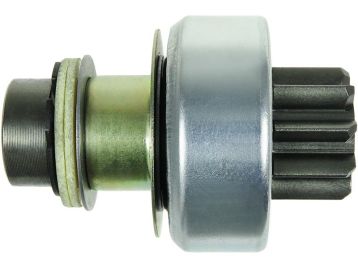

Brand new AS-PL Starter motor drive



I.d.1: 11.40 mm

L.1: 64.40 mm

L.2: 16.80 mm

Teeth: 9

Splines: 12

O.d.1: 45.00 mm

O.d.2: 25.20 mm

Rotation: CW



Reference number

CodeManufacturer
135717Cargo
CQ2010051Cq
DRV4191Electrolog
225332Era
9945556Fiat
9948346Fiat
1929Ghibaudi
SDL5717Krauf
SDL9717Krauf
085540971010Lucas
085541780010Lucas
85540971Magneti Marelli
85541780Magneti Marelli
1016307Powermax
81016307Powermax
00-019Stemot
21-41-15Visnova
54-9310Wai / Transpo
54-9310-1Wai / Transpo
SDV38152Woodauto
1.01.0779.0Zen


Usage

BrandModelTypeYearNote
As-plS4015starter motors
As-plS4020starter motors
As-plS4022starter motors
As-plS4033starter motors
LUCAS063101000010starter motors
LUCAS063101002010starter motors
LUCAS063101008010starter motors
LUCAS063102003010starter motors
LUCAS063102004010starter motors
LUCAS063102007010starter motors
LUCAS063102008010starter motors
LUCAS063103002010starter motors
LUCAS063103003010starter motors
LUCAS063103025010starter motors
LUCAS063103026010starter motors
LUCAS063103028010starter motors
LUCAS063222889010starter motors
LUCAS063222900010starter motors
LUCAS063222901010starter motors
LUCAS063222905010starter motors
LUCAS063222908010starter motors
LUCAS063222909010starter motors
LUCAS063222936010starter motors
LUCAS063223085010starter motors
LUCAS063223101010starter motors
LUCAS063223108010starter motors
LUCAS063223109010starter motors
LUCAS063223200010starter motors
LUCAS063223303010starter motors
MAGNETI MARELLI63101000starter motors
MAGNETI MARELLI63101002starter motors
MAGNETI MARELLI63101008starter motors
MAGNETI MARELLI63102003starter motors
MAGNETI MARELLI63102004starter motors
MAGNETI MARELLI63102007starter motors
MAGNETI MARELLI63102008starter motors
MAGNETI MARELLI63103002starter motors
MAGNETI MARELLI63103003starter motors
MAGNETI MARELLI63103008starter motors
MAGNETI MARELLI63103025starter motors
MAGNETI MARELLI63103026starter motors
MAGNETI MARELLI63103028starter motors
MAGNETI MARELLI63201008starter motors
MAGNETI MARELLI63222888starter motors
MAGNETI MARELLI63222889starter motors
MAGNETI MARELLI63222900starter motors
MAGNETI MARELLI63222901starter motors
MAGNETI MARELLI63222904starter motors
MAGNETI MARELLI63222905starter motors
MAGNETI MARELLI63222908starter motors
MAGNETI MARELLI63222909starter motors
MAGNETI MARELLI63222936starter motors
MAGNETI MARELLI63223035starter motors
MAGNETI MARELLI63223085starter motors
MAGNETI MARELLI63223108starter motors
MAGNETI MARELLI63223109starter motors
MAGNETI MARELLI63223200starter motors
MAGNETI MARELLI63223303starter motors
MAKO063103002000starter motors
MAKO063103017000starter motors
MAKO063223101000starter motors
MAKO63223101starter motors
OPEL93222909starter motors
