SD4083P


Code: SD4083P

Category: Starter drives

Manufacturer: Magneti Marelli

Supplier: As-pl

PREMIUM LINE

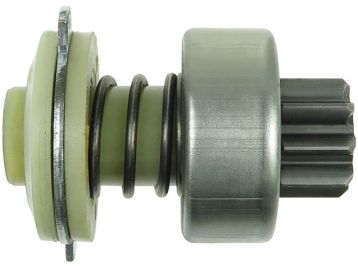

Brand new AS-PL Starter motor drive



I.d.1: 11.40 mm

L.1: 71.00 mm

L.2: 16.50 mm

Teeth: 9

Splines: 12

O.d.1: 45.00 mm

O.d.2: 25.40 mm

Rotation: CW



Reference number

CodeManufacturer
130737Cargo
132074Cargo
5466-0801Dixie
DRV7003Electrolog
225057Era
74860391Fiat
74861441Fiat
74876851Fiat
74881251Fiat
74886731Fiat
74981251Fiat
9935948Fiat
9936036Fiat
9936049Fiat
9941892Fiat
2730Ghibaudi
SDE0737Krauf
CQ2010605Lauber
085540661010Lucas
4142235Magneti Marelli
4145751Magneti Marelli
4202988Magneti Marelli
4249166Magneti Marelli
85540311Magneti Marelli
85540661Magneti Marelli
85540811Magneti Marelli
1015735Powermax
00-004Stemot
3-608Wai / Transpo
54-9136Wai / Transpo
SDV3814Woodauto
0120Zen
1.01.0120.0Zen
ZN0120Zen


Usage

BrandModelTypeYearNote
MAGNETI MARELLI63220700starter motors
MAGNETI MARELLI63220701starter motors
MAGNETI MARELLI63220703starter motors
MAGNETI MARELLI63220704starter motors
MAGNETI MARELLI63220705starter motors
MAGNETI MARELLI63220706starter motors
MAGNETI MARELLI63220721starter motors
MAGNETI MARELLI63220724starter motors
MAGNETI MARELLI63220732starter motors
MAGNETI MARELLI63220734starter motors
MAGNETI MARELLI63220735starter motors
MAGNETI MARELLI63220740starter motors
MAGNETI MARELLI63220741starter motors
MAGNETI MARELLI63220743starter motors
MAGNETI MARELLI63220744starter motors
MAGNETI MARELLI63220746starter motors
MAGNETI MARELLI63220830starter motors
MAGNETI MARELLI63220833starter motors
MAGNETI MARELLI63220834starter motors
MAGNETI MARELLI63220932starter motors
MAGNETI MARELLI63220940starter motors
MAGNETI MARELLI63221300starter motors
MAGNETI MARELLI63221302starter motors
MAGNETI MARELLI63221303starter motors
MAGNETI MARELLI63221330starter motors
MAGNETI MARELLI63221332starter motors
MAGNETI MARELLI63221333starter motors
MAGNETI MARELLI63221531starter motors
MAGNETI MARELLI63221532starter motors
MAGNETI MARELLI63221633starter motors
