SD5025P


Code: SD5025P

Category: Starter drives

Manufacturer: MITSUBISHI

Supplier: As-pl

PREMIUM LINE

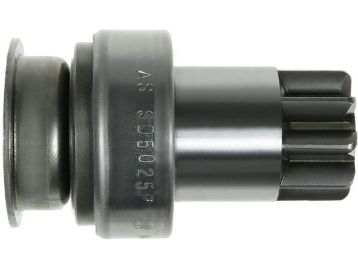

Brand new AS-PL Starter motor drive



I.d.1: 10.70 mm

L.1: 74.00 mm

L.2: 39.30 mm

Teeth: 9

Splines: 8

O.d.1: 46.00 mm

O.d.2: 29.60 mm

Rotation: CW



Reference number

CodeManufacturer
UD15666SDAs-pl
137218Cargo
DRV5032Electrolog
225669Era
SDM6218Krauf
SDM9218Krauf
M191T12971MITSUBISHI
23354-W9810Nissan
1013471Powermax
54-8342Wai / Transpo
54-8342-1Wai / Transpo
SDV32640Woodauto
1.01.1592.0Zen
1592Zen
ZN1592Zen


Usage

BrandModelTypeYearNote
MITSUBISHIM000T60181starter motors
MITSUBISHIM001T60081starter motors
MITSUBISHIM001T60181starter motors
MITSUBISHIM001T60185starter motors
MITSUBISHIM001T60285Astarter motors
MITSUBISHIM001T60581starter motors
MITSUBISHIM001T61181starter motors
MITSUBISHIM0T60081Astarter motors
MITSUBISHIM0T60181starter motors
MITSUBISHIM0T60181Astarter motors
MITSUBISHIM0T60581starter motors
MITSUBISHIM0T65381starter motors
MITSUBISHIM1T60081starter motors
MITSUBISHIM1T60181starter motors
MITSUBISHIM1T60185starter motors
MITSUBISHIM1T60281starter motors
MITSUBISHIM1T60285Astarter motors
MITSUBISHIM1T60581starter motors
MITSUBISHIM1T61181starter motors
