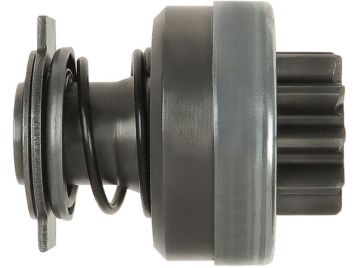

SD9081


Code: SD9081

Category: Starter drives

Manufacturer: Perkins

Supplier: As-pl

STANDARD LINE

Brand new AS-PL Starter motor drive



I.d.1: 14.10 mm

L.1: 76.00 mm

L.2: 18.00 mm

Teeth: 10

Splines: 14

O.d.1: 61.10 mm

O.d.2: 39.40 mm

Rotation: CW



Reference number

CodeManufacturer
UD00809SDAs-pl
UD14979SDAs-pl
DRV79037Electrolog
6340 Ghibaudi
16.902.560Iskra / Letrika
SDI4247Krauf
SDI4247PNKrauf
SDI4247SUKrauf
72736750Mahle
MSX 52Mahle
MSX52Mahle
01-050Stemot
69-52-51Visnova
MAHMSX52Woodauto
SDV30829Woodauto


Usage

BrandModelTypeYearNote
As-plS9087starter motors
As-plS9295Sstarter motors
PERKINS2873K625starter motors
Iskra / Letrika11131526starter motors
Iskra / Letrika11131570starter motors
Iskra / Letrika11131921starter motors
Iskra / Letrika11132165starter motors
Iskra / Letrika11132166starter motors
Iskra / LetrikaAZE4123starter motors
Iskra / LetrikaAZE4139starter motors
Iskra / LetrikaAZE4194starter motors
Iskra / LetrikaAZE4247starter motors
Iskra / LetrikaAZE4248starter motors
