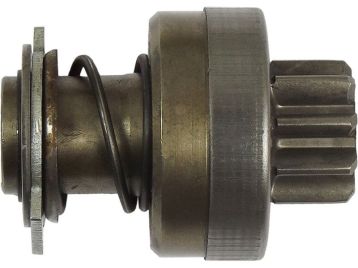

SD9119


Code: SD9119

Category: Starter drives

Manufacturer: Iskra / Letrika

Supplier: As-pl

PREMIUM LINE

Brand new AS-PL Starter motor drive



I.d.1: 14.00 mm

L.1: 82.00 mm

L.2: 20.30 mm

Teeth: 9

Splines: 6

O.d.1: 61.60 mm

O.d.2: 34.20 mm

Rotation: CW



Reference number

CodeManufacturer
UD11595SDAs-pl
335111Cargo
5473-4201Dixie
DRV7938Electrolog
226067Era
6172 Ghibaudi
16.911.910Iskra / Letrika
72738009Mahle
MSX 513Mahle
MSX513Mahle
01-040Stemot
MAHMSX513Woodauto
SDV38947Woodauto


Usage

BrandModelTypeYearNote
As-plS9176starter motors
As-plS9236starter motors
Iskra / Letrika11131769starter motors
Iskra / Letrika11131770starter motors
Iskra / Letrika11131864starter motors
Iskra / Letrika11131865starter motors
Iskra / Letrika11131868starter motors
Iskra / Letrika11131869starter motors
Iskra / Letrika11132140starter motors
Iskra / LetrikaAZF4197starter motors
Iskra / LetrikaAZF4198starter motors
Iskra / LetrikaAZF4231starter motors
Iskra / LetrikaAZF4232starter motors
Iskra / LetrikaAZF4233starter motors
Iskra / LetrikaAZF4234starter motors
