  3. SD9156S



SD9156S


Code: SD9156S
Category: Starter drives
Manufacturer: Prestolite
Supplier: As-pl
STANDARD LINE

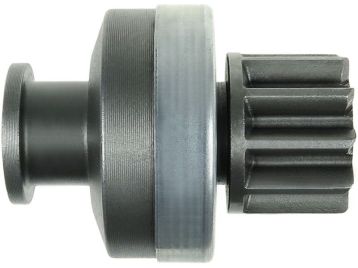

Brand new AS-PL Starter motor drive


I.d.1: 15.00 mm
L.1: 80.50 mm
L.2: 31.50 mm
Teeth: 10
Splines: 6
O.d.1: 62.00 mm
O.d.2: 39.00 mm
Rotation: CW


Reference number

CodeManufacturer
UD42878SDAs-pl
DRV9706Electrolog
SDP3026Krauf
SDP8026Krauf
2605100Prestolite
M93R3026SE010000Prestolite


Usage

BrandModelTypeYearNote
As-plS9249starter motors
As-plS9306Sstarter motors
As-plS9368Sstarter motors
CUMMINSC4934622starter motors
CUMMINSC4992135starter motors
PRESTOLITEM100R2008SEstarter motors
PRESTOLITEM100R3001SEstarter motors
PRESTOLITEM93R3007SEstarter motors
PRESTOLITEM93R3014SEstarter motors
PRESTOLITEM93R3026SEstarter motors
PRESTOLITEM97R3014SEstarter motors
