ARC0105
Cod: ARC0105
Categorie: Bloc diode
Varianta constr.: Bosch
Supplier: As-pl
STANDARD LINE

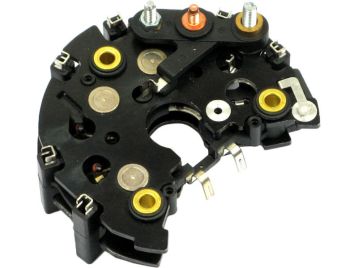

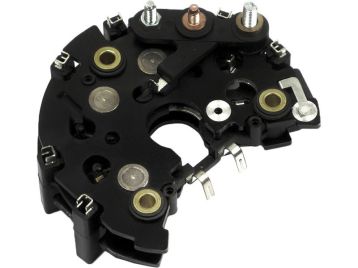

Brand new AS-PL Alternator rectifier
B+H.: 11.20 mm
D+H.: 10.00
Diametru B+: M6x1.0
Diametru D+: M5x0.8
Diode Amp.: 35
Diodes: 6
I.d.1: 22.90 mm
O.d.1: 111.90 mm
Source: Y
Reference number
| Cod | Varianta constr. | |
| 1127319569 | Bosch | |
| 1127319570 | Bosch | |
| 137507 | Cargo | |
| RCT1046 | Electrolog | |
| PRP582 | Ghibaudi | |
| AEB1507 | Krauf | |
| AMP1570 | Magneti Marelli | |
| RB-105H | Mobiletron | |
| IBR570 | Wai / Transpo |
Utilizat pentru
| Brand | Model | Tip | An | Observatii |
| As-pl | A0378 | alternators | ||
| BOSCH | 0123310023 | alternators | ||
| BOSCH | 0123310029 | alternators | ||
| BOSCH | 0123310048 | alternators | ||
| BOSCH | 0123310050 | alternators | ||
| BOSCH | 0123310055 | alternators | ||
| BOSCH | 0123320050 | alternators | ||
| BOSCH | 0123320067 | alternators |
