  2. S3091



S3091


Cod: S3091
Categorie: Electromotor
Varianta constr.: Valeo
Supplier: As-pl
: TS18E13
STANDARD LINE

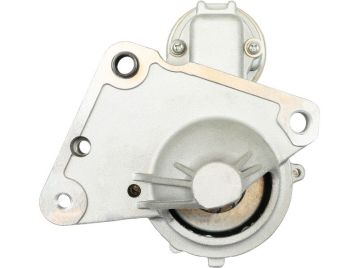

Brand new AS-PL Starter motor


B: 16.50 mm
C.1: 9.50 mm
C.2: M8x1.25 mm
C.3: M8x1.25 mm
C.4: 9.50 mm
L.1: 218.00 mm
Numărul dinților: 11
Numărul dinților (se potriveşte în): 11.12
Numărul găurilor de prindere: 4
Numărul găurilor filetate: 2
O.1: 123.50 mm
O.2: 29.00 mm
O.3: 46.50 mm
O.4: 91.00 mm
Putere: 1.50 kW
Rotație: CW
Voltaj: 12 v


Reference number

CodVarianta constr.
S3091 As-pl
UD01488SAs-pl
AEX1299Autoelectro
12417803514Bmw
F042200019Bosch
CST15215ASCasco
EAA-121365Eaa
STR00145Electrolog
STR00195Electrolog
25-3296Elstock
220429Era
3647959Gm
95526025Gm
STM1329Krauf
STV1329Krauf
LRS01737Lucas
LRS1737Lucas
943213291010Magneti Marelli
5035725Meat & Doria
12417803514Mini
M000T22471 MITSUBISHI
M000T22471AMMITSUBISHI
M000T22472 MITSUBISHI
M000T22472AMMITSUBISHI
M000T22473 MITSUBISHI
M000T22473AMMITSUBISHI
M000T22473ZZ9MITSUBISHI
M0T22471 MITSUBISHI
M0T22471AMMITSUBISHI
M0T22472 MITSUBISHI
M0T22472AMMITSUBISHI
M0T22473 MITSUBISHI
M0T22473AMMITSUBISHI
M0T22473ZZ9MITSUBISHI
3647959Opel
95526025Opel
1638116280Peugeot
5645100680Peugeot
5802AAPeugeot
5802EGPeugeot
5802Z8Peugeot
5802Z9Peugeot
5802ZBPeugeot
9645100680Peugeot
9662854080Peugeot
9663528880Peugeot
966352888001Peugeot
9801667780Peugeot
88212646Powermax
20479512OEReal
RNLTS18E13Rnl
6015215.0Sando
MAV172150SIOM
STX200013Stardax
STX200013RStardax
STX200099Stardax
STX200099RStardax
28100-YV020Toyota
28100YV020Toyota
190895 Valeo
438166 Valeo
458185 Valeo
495107Valeo
TS18E13 Valeo
3647959Vauxhall
95526025Vauxhall
STR54044Woodauto
VAL438166Woodauto


Utilizat pentru

BrandModelTipAnObservatii
CITROENBerlingo 1.6 BlueHDi 100[BHY(DV6FD)]12.2014-
CITROENBerlingo 1.6 BlueHDi 120[BHZ(DV6FC)]12.2014-
CITROENBerlingo 1.6 HDi[9HL(DV6C)]07.2010-
CITROENBerlingo 1.6 HDi[9HR(DV6C)]07.2010-
CITROENBerlingo 1.6 HDi 110[9HL(DV6C)]07.2010-
CITROENBerlingo 1.6 HDi 110[9HR(DV6C)]07.2010-
CITROENBerlingo 1.6 HDi 115[9HL(DV6C)]07.2010-
CITROENBerlingo 1.6 HDi 115[9HR(DV6C)]07.2010-
CITROENBerlingo 1.6 HDi 90[9HP(DV6DTED)]07.2010-
CITROENBerlingo 1.6 HDi 90[9HX(DV6ATED4)]07.2010-
CITROENBerlingo Multispace MPV 1.6 HDi 4x4[9HF(DV6DTED)]02.2012-
CITROENBerlingo Multispace MPV 1.6 HDi 4x4[9HR(DV6C)]02.2012-
CITROENBerlingo Van 1.6 HDi 4x402.2012-
CITROENBerlingo Van 1.6 HDi 4x4[9HF(DV6DTED)]02.2012-
CITROENBerlingo Van 1.6 HDi 4x4[BHY(DV6FD)]12.2014-
CITROENC1 1.4 HDi[DV4D]06.2005-
CITROENC2 1.4 HDi[8HX(DV4TD)]09.2003-
CITROENC2 1.4 HDi[8HZ(DV4TD)]09.2003-
CITROENC3 1.4 HDi[8HR(DV4C)]11.2009-
CITROENC3 1.4 HDi[8HX(DV4TD)]02.2002-
CITROENC3 1.4 HDi[8HX(DV4TD)]04.2004-
CITROENC3 1.4 HDi[8HZ(DV4TD)]11.2009-
CITROENC3 1.4 HDi 16V[8HY(DV4TED4)]02.2002-
CITROENC3 1.6 HDi[9HP(DV6DTED)]11.2009-
CITROENC3 1.6 HDi 16V[9HX(DV6ATED4)]10.2005-
CITROENC3 1.6 HDi 16V[9HZ(DV6TED4)]09.2005-
CITROENC3 Picasso 1.6 HDi 115[9HD(DV6C)]01.2013-
CITROENC3 Picasso 1.6 HDi110[9HR(DV6C)]05.2010-
CITROENC4 1.6 BlueHDi 115[BHX(DV6FC)]08.2014-
CITROENC4 1.6 BlueHDi 120[BHZ(DV6FC)]02.2015-
CITROENC4 1.6 E-HDi 110[9HR]09.2010-
CITROENC4 1.6 HDi[9HR(DV6C)]11.2009-
CITROENC4 1.6 HDi[9HX(DV6ATED4)]11.2004-
CITROENC4 1.6 HDi[9HY(DV6ATED4)]11.2004-
CITROENC4 1.6 HDi[9HY(DV6TED4)]11.2004-
CITROENC4 1.6 HDi[9HY(DV6TED4)]07.2006-
CITROENC4 1.6 HDi[9HZ(DV6ATED4)]11.2004-
CITROENC4 1.6 HDi[9HZ(DV6TED4)]11.2004-
CITROENC4 1.6 HDi[9HZ(DV6TED4)]07.2006-
CITROENC4 1.6 HDi 110[9HR]09.2010-
CITROENC4 1.6 HDi 115[9HC(DV6C)]09.2013-
CITROENC4 1.6 HDi 115[BHX(DV6FC)]09.2013-
CITROENC4 1.6 HDi 90[9HP(DV6DTED)]09.2013-
CITROENC4 Grand Picasso 1.6 HDi[9HY(DV6TED4)]10.2006-
CITROENC4 Grand Picasso 1.6 HDi[9HZ(DV6TED4)]10.2006-
CITROENC4 Picasso 1.6 HDi[9HY(DV6TED4)]02.2007-
CITROENC4 Picasso 1.6 HDi[9HZ(DV6TED4)]02.2007-
CITROENC4 Picasso 1.6 HDi 110[9HL(DV6C)]09.2010-
CITROENC4 Picasso 1.6 HDi 110[9HR(DV6C)]09.2010-
CITROENC4 Picasso 1.6 HDi 115[9HC(DV6C)]02.2013-
CITROENC4 Picasso 1.6 HDi 115[BHX(DV6FC)]02.2013-
CITROENC4 Picasso 1.6 HDi 90[9HP(DV6DTED)]02.2013-
CITROENC4 Picasso 1.6 HDi110[9HR(DV6C)]09.2010-
CITROENC5 1.6 HDi[9HR(DV6C)]07.2010-
CITROENC5 1.6 HDi[9HY(DV6TED4)]09.2004-
CITROENC5 1.6 HDi[9HZ(DV6TED4)]09.2004-
CITROENC5 1.6 HDi[9HZ(DV6TED4)]02.2008-
CITROENC5 1.6 HDi 115[9HR(DV6C)]01.2012-
CITROENDS3 1.4 HDi 70[8HR(DV4C)]04.2010-
CITROENDS3 1.6 HDi[9HP(DV6DTED)]11.2009-
CITROENDS3 1.6 HDi[9HR(DV6C)]11.2009-
CITROENDS3 1.6 HDi 115[9HL(DV6C)]08.2012-
CITROENDS3 1.6 HDi 90[9HP(DV6DTED)]01.2013-
CITROENDS4 1.6 BlueHDi 115[BHX(DV6FC)]08.2014-
CITROENDS4 1.6 BlueHDi 120[BHZ(DV6FC)]07.2014-
CITROENDS4 1.6 HDi 110[9HR(DV6C)]04.2011-
CITROENDS4 1.6 HDi 110[9HR]04.2011-
CITROENDS4 1.6 HDi 115[9HL(DV6C)]08.2012-
CITROENDS4 1.6 HDi 90[9HP(DV6DTED)]05.2011-
CITROENDS4 1.6 THP 200[5FU(EP6DTX)]04.2011-
CITROENDS5 1.6 BlueHDi 120[BHZ(DV6FC)]07.2015-
CITROENDS5 1.6 HDi 110[9HR(DV6C)]11.2011-
CITROENDS5 1.6 HDi 115[9HD(DV6C)]06.2012-
CITROENNemo 1.4 HDi[8HS(DV4TD)]02.2008-
CITROENNemo 1.4 HDi[8HS(DV4TED)]04.2009-
CITROENXsara Picasso 1.6 HDi[9HY(DV6TED4)]05.2004-
CITROENXsara Picasso 1.6 HDi[9HZ(DV6TED4)]05.2004-
MINICooper 1.6 D[9HZ(DV6TED4)]03.2007-
MINICooper 1.6 D[W16D16]03.2007-
MINICooper 1.6 D Clubman[9HZ(DV6ATED4)]10.2007-
MINIOne 1.6 D[9HZ(DV6TED4)]06.2009-
PEUGEOT1007 1.4 HDi[8HX(DV4TD)]04.2005-
PEUGEOT1007 1.4 HDi[8HZ(DV4TD)]04.2005-
PEUGEOT107 1.4 HDi[8HT(DV4TD)]06.2005-
PEUGEOT2008 1.4 HDi[8HR(DV4C)]06.2013-
PEUGEOT2008 1.6 HDi[9HD(DV6CTED)]03.2013-
PEUGEOT206 1.4 HDi[8HX(DV4TD)]09.2001-03.2009
PEUGEOT206 1.4 HDi[8HZ(DV4TD)]09.2001-03.2009
PEUGEOT206 1.4 HDi eco[8HX(DV4TD)]09.2001-
PEUGEOT206 1.4 HDi eco[8HZ(DV4TD)]09.2001-
PEUGEOT206 1.4 HDi eco 70[8HZ(DV4TD)]09.2008-
PEUGEOT206 1.6 HDi[9HZ(DV6TED4)]04.2005-
PEUGEOT206 1.6 HDi FAP[9HY(DV6TED4)]05.2004-
PEUGEOT206 1.6 HDi FAP[9HZ(DV6TED4)]05.2004-
PEUGEOT207 1.4 HDi[8HR(DV4C)]02.2006-
PEUGEOT207 1.4 HDi[8HZ(DV4TD)]02.2006-
PEUGEOT207 1.4 HDi[8HZ(DV4TD)]04.2007-
PEUGEOT207 1.6 HDi[9HP(DV6DTED)]11.2009-
PEUGEOT207 1.6 HDi[9HR(DV6C)]08.2009-
PEUGEOT207 1.6 HDi[9HV(DV6ATED4)]02.2006-
PEUGEOT207 1.6 HDi[9HV(DV6TED4)]02.2006-
PEUGEOT207 1.6 HDi[9HX(DV6ATED4)]02.2006-
PEUGEOT207 1.6 HDi[9HY(DV6TED4)]02.2006-
PEUGEOT207 1.6 HDi[9HZ(DV6TED4)]02.2006-
PEUGEOT207 1.6 HDi[9HZ(DV6TED4)]02.2007-
PEUGEOT207 1.6 HDi[9HZ(DV6TED4)]06.2007-
PEUGEOT207 SW 1.6 HDi[9HP(DV6DTED)]11.2009-
PEUGEOT207 SW 1.6 HDi[9HR(DV6C)]08.2009-
PEUGEOT208 1.4 HDi[8HP(DV4C)]03.2012-
PEUGEOT208 1.4 HDi[8HR(DV4C)]03.2012-
PEUGEOT208 1.4 HDi[8HR(DV4C)]10.2012-
PEUGEOT208 1.6 HDi[9HD(DV6CTED)]03.2012-
PEUGEOT208 1.6 HDi[9HP(DV6DTED)]03.2012-
PEUGEOT270 CC 1.6 HDi[9HR(DV6C)]08.2009-
PEUGEOT3008 1.6 HDi[9HD(DV6CTED)]03.2013-
PEUGEOT3008 1.6 HDi[9HR(DV6C)]08.2010-
PEUGEOT3008 1.6 HDi[9HZ(DV6ATED4)]06.2009-
PEUGEOT3008 1.6 HDi BlueHDi 115[BHX(DV6FC)]02.2013-
PEUGEOT3008 1.6 HDi BlueHDi 120[BHZ(DV6FC)]05.2016-
PEUGEOT307 1.6 HDi FAP[9HY(DV6TED4)]02.2004-
PEUGEOT307 1.6 HDi FAP[9HZ(DV6TED4)]02.2004-
PEUGEOT308 1.6 HDi03.2013-
PEUGEOT308 1.6 HDi[9HC(DV6C)]09.2013-
PEUGEOT308 1.6 HDi[9HP(DV6DTED)]11.2009-
PEUGEOT308 1.6 HDi[9HR(DV6C)]12.2009-
PEUGEOT308 1.6 HDi[9HV(DV6ATED4)]09.2007-
PEUGEOT308 1.6 HDi[9HX(DV6ATED4)]09.2007-
PEUGEOT308 1.6 HDi[BHZ(DV6FC)]09.2013-
PEUGEOT308 1.6 HDi[DV6TED4]09.2007-
PEUGEOT308 2.0 HDi[RHR(DW10BTED4)]07.2010-
PEUGEOT308 CC 1.6 HDi[9HZ(DV6TED4)]03.2013-
PEUGEOT308 SW 1.6 HDi09.2013-
PEUGEOT308 SW 1.6 HDi03.2014-
PEUGEOT308 SW 1.6 HDi[9HD(DV6C)]03.2014-
PEUGEOT308 SW 1.6 HDi[9HR(DV6C)]12.2009-
PEUGEOT380 SW 1.6 HDi[9HP(DV6DTED)]11.2009-
PEUGEOT407 1.6 HDi FAP[9HY(DV6TED4)]05.2004-
PEUGEOT407 1.6 HDi FAP[9HZ(DV6TED4)]05.2004-
PEUGEOT5008 1.6 HDi[9HD(DV6CTED)]03.2013-
PEUGEOT5008 1.6 HDi[9HR(DV6C)]08.2010-
PEUGEOT5008 1.6 HDi[9HZ(DV6TED4)]09.2009-
PEUGEOT5008 1.6 HDi[9HZP(DV6TED4)]09.2009-
PEUGEOT5008 1.6 HDi BlueHDi 120[BHZ(DV6FC)]12.2016-
PEUGEOT508 1.6 BlueHDi 120[BHZ(DV6FC)]03.2014-
PEUGEOT508 1.6 HDi[9HD(DV6CTED)]02.2012-
PEUGEOT508 1.6 HDi[9HR(DV6C)]11.2010-
PEUGEOT508 1.6 HDi[BHX(DV6FC)]09.2014-
PEUGEOT508 SW 1.6 HDi[9HD(DV6CTED)]02.2012-
PEUGEOT508 SW 1.6 HDi[9HR(DV6C)]11.2010-
PEUGEOT508 SW 1.6 HDi[BHX(DV6FC)]09.2014-
PEUGEOTBipper 1.4 HDi[8HS(DV4TD)]02.2008-
PEUGEOTBipper 1.4 HDi[8HS(DV4TD)]04.2008-
PEUGEOTPartner 1.6 BlueHDi 100[BHY(DV6FD)]04.2015-
PEUGEOTPartner 1.6 BlueHDi 120[BHZ(DV6FC)]04.2015-
PEUGEOTPartner 1.6 BlueHDi 75[BHW(DV6FE)]01.2015-
PEUGEOTPartner 1.6 BlueHDi Tepee[BHW(DV6FE)]01.2015-
PEUGEOTPartner 1.6 BlueHDi Tepee[BHY(DV6FD)]12.2014-
PEUGEOTPartner 1.6 BlueHDi Tepee[BHZ(DV6FC)]12.2014-
PEUGEOTPartner 1.6 HDi08.2010-
PEUGEOTPartner 1.6 HDi[9HF(DV6DTED)]03.2013-
PEUGEOTPartner 1.6 HDi[9HL(DV6C)]03.2013-
PEUGEOTPartner 1.6 HDi[9HP(DV6DTED)]04.2010-
PEUGEOTPartner 1.6 HDi BlueHDi 110 4x4[BHY(DV6FD)]04.2015-
PEUGEOTPartner 1.6 HDi Tepee[9HF(DV6DTED)]03.2013-
PEUGEOTPartner 1.6 HDi Tepee[9HL(DV6C)]08.2010-
PEUGEOTPartner 1.6 HDi Tepee[9HL(DV6C)]03.2013-
PEUGEOTPartner 1.6 HDi Tepee[9HP(DV6DTED)]04.2010-
PEUGEOTPartner 1.6 HDi Tepee[9HX(DV6ATED4)]04.2010-
TOYOTAAygo 1.4 HDi[2WZTV]07.2005-08.2010
